Cummins 6BTA5.9-G2 Silent Diesel Generator for Hospitals & Manufacturing Plants

Cummins 6BTA5.9-G2 Technical Data.pdf

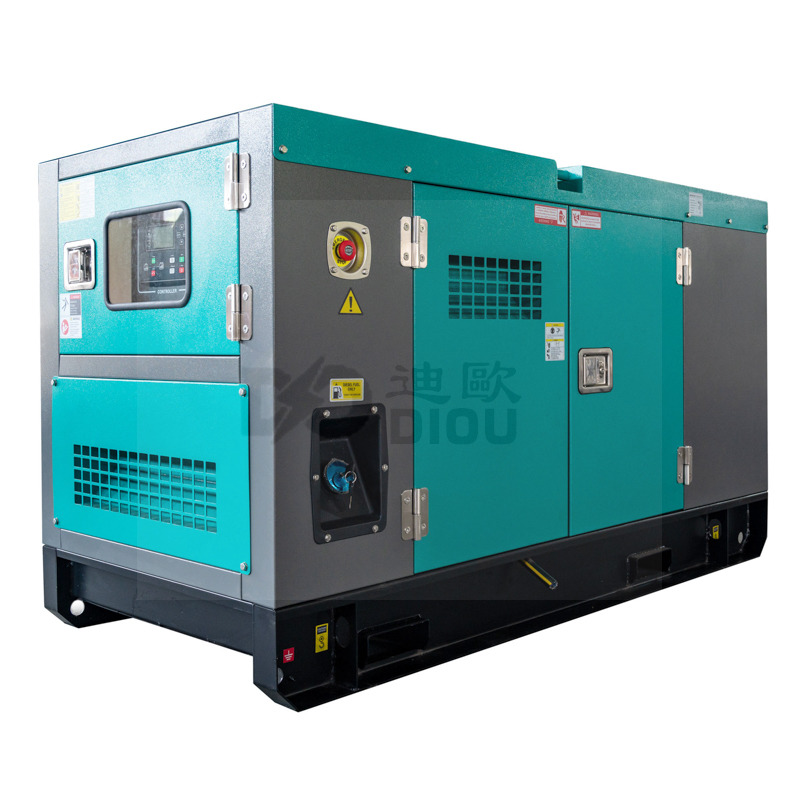

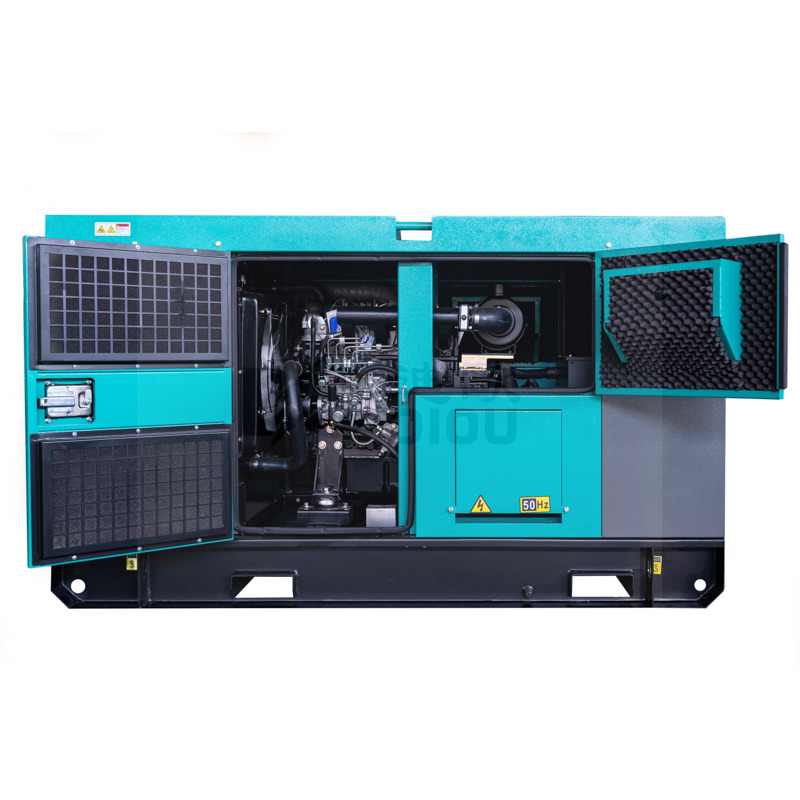

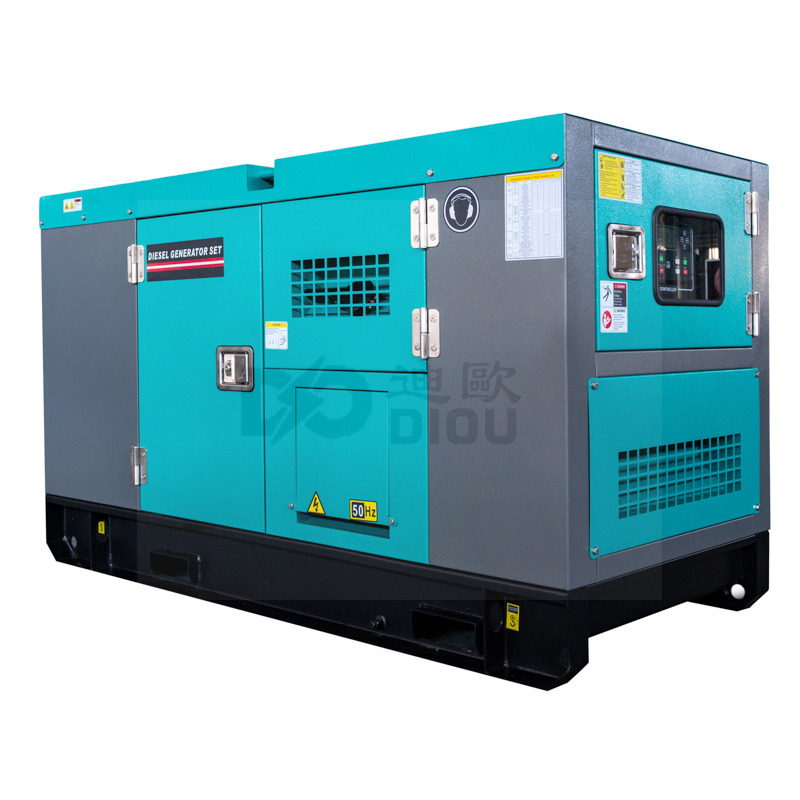

Cummins 6BTA5.9-G2 Industrial Silent Diesel Generator Overview

Designed for industrial and manufacturing applications, the Cummins 6BTA5.9-G2 delivers stable, low-noise power for sensitive equipment and continuous operations.

DCEC 6BTA5.9-G2-A generator drive engine is a 6-cylinders in line,5.9 liter four-strokes engine with 102 mm bore and 120 mm stroke.

Equipped with North Oil PB Pump/Electronic Governor, comes with turbocharger and Water-Air intercooler.

The prime power for 50 Hz generator set (1500 RPM) of DCEC 6BTA5.9-G2-A generator drive engine is 106 kW.

DCEC 6BTA5.9-G2-B generator drive engine is a 6-cylinders in line,5.9 liter four-strokes engine with 102 mm bore and 120 mm stroke.

Equipped with North Oil PB Pump/Electronic Governor, comes with Turbo Charging With Inter-Cooling.

The prime power for 60 Hz generator set (1800 RPM) of DCEC 6BTA5.9-G2-B generator drive engine is 120 kW.

Key Features:

Silent operation for noise-sensitive industrial environments

Stable power output for factory machinery

Optional ATS and remote monitoring available

Robust and weatherproof enclosure

Engine Specs:

Engine Model: Cummins 6BTA5.9-G2

Engine Weight: 453 kg

Packing Size(L * W * H): 1080 mm * 625 mm * 1085 mm

Applications:

Factories, production lines, industrial plants, standby power supply

Hospitals, clinics, data centers, commercial offices, emergency backup,etc.

DIOU POWER provides factory-direct Cummins silent diesel generators with high-quality support.
