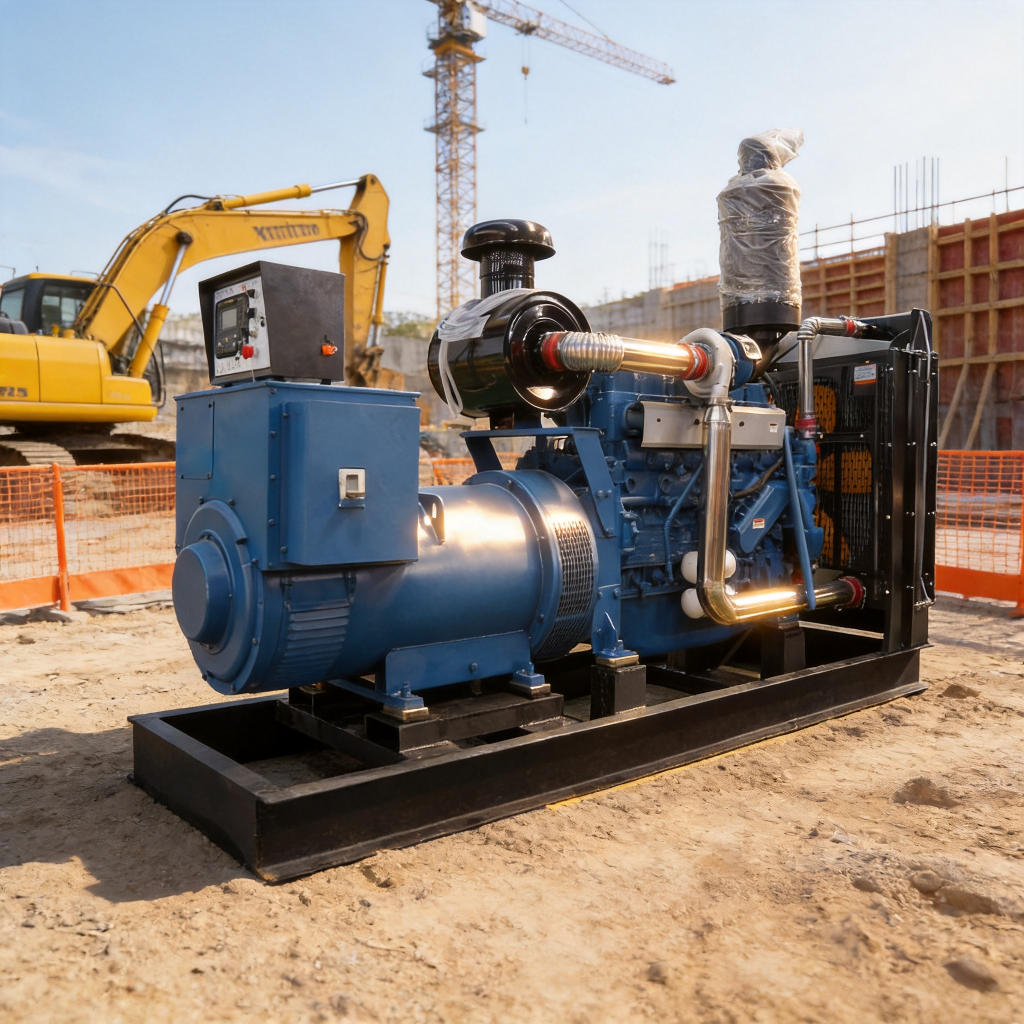

Cummins KTA50-G3 Open Frame Diesel Generator Set 1000kW Prime 1120kW Standby

1. KTA50-G3 open frame diesel generator

2. 1000kW Cummins open genset

3. CCEC KTA50-G3 industrial power generator

4. 1120kW standby open diesel generator

5. V16 turbo diesel generator for mining plant

Meta Description (20 words exactly, CTA + core data)

Reliable KTA50-G3 open frame genset, 1000kW prime, low fuel consumption, industrial emergency power supply

Product Introduction (60 words exactly)

This CCEC KTA50-G3 open frame diesel generator adopts 16-cylinder V-type turbo intercooled engine, 1000kW prime & 1120kW standby power. Open frame design enables easy daily maintenance, matched with brushless alternator, stable voltage output, ideal for mine, factory and construction continuous power supply.

Product Description (300 words total, bullet points, real Cummins data)

Engine Core Specs

• Model: CCEC KTA50-G3, 4-stroke 60° V16, displacement 50.3L, bore&stroke 159mm×159mm, turbo low-temp aftercooled intakeCummins

• Power rating: Prime 1000kW(1250kVA), Standby 1120kW(1400kVA), rated speed 1500rpm, PT direct injection fuel system

Alternator Configuration

• Brushless 4-pole synchronous alternator, H-class insulation, IP23 protection, AVR voltage regulation ≤±1%

• 3-phase 4-wire Y connection, power factor 0.8 lag, stable output without voltage fluctuation under heavy load

Open Frame Structure Advantage

• Unenclosed open rack layout, all components exposed for fast filter, oil and spare parts replacement

• Heavy-duty steel base frame with integrated fuel tank, shock absorbers to reduce running vibration and noise

Control & Protection System

• Digital controller with auto alarm & shutdown for low oil pressure, high temp, over-speed, overload

• Real-time display of voltage, current, frequency, running hours, support ATS automatic switching connection
