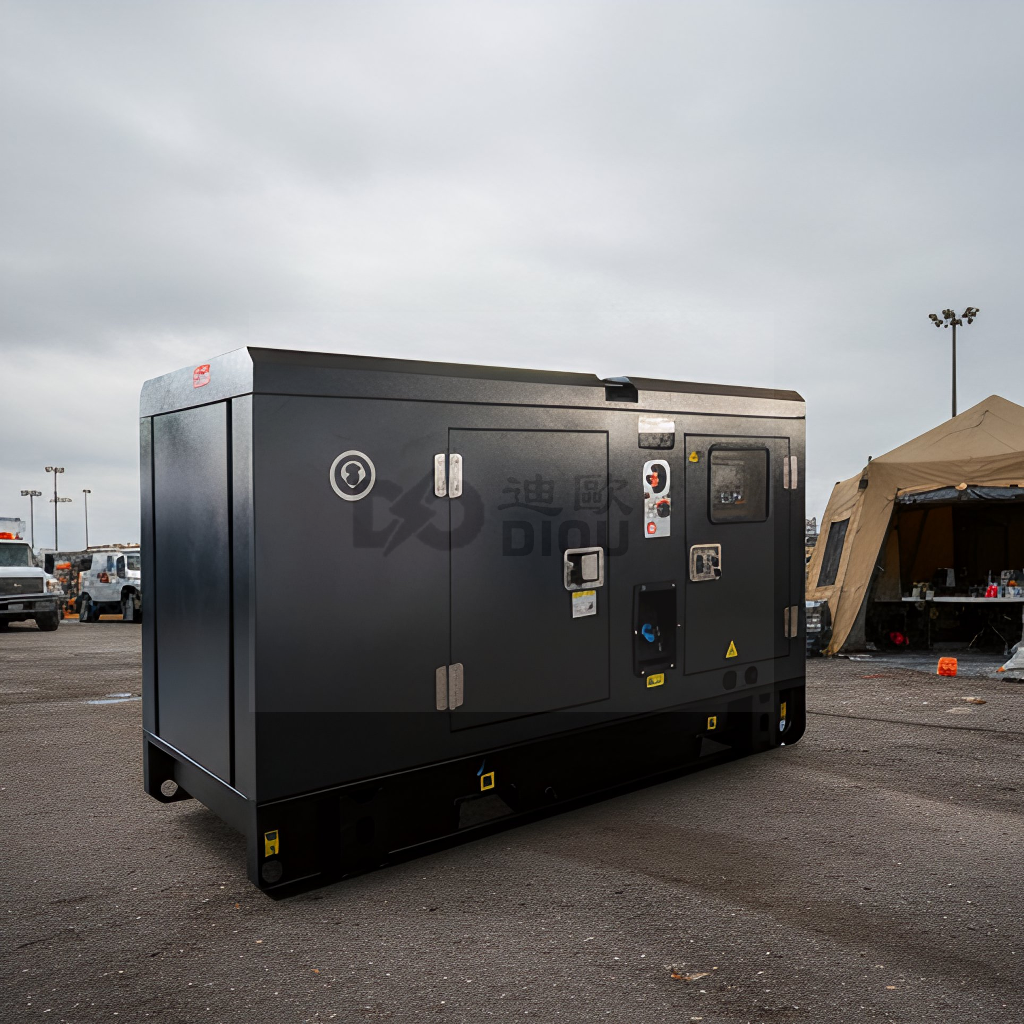

Cummins KTAA19-G6A High Capacity Diesel Generator

The Cummins KTAA19-G6A diesel generator is designed for high-capacity standby and heavy-load power systems. It belongs to the large displacement 18.9L engine platform and is widely applied in high-demand electrical infrastructure, utility backup, and large facility power protection projects.

Power Class Positioning

This model is commonly configured in the 600kW class generator range and supports high kVA output generator sets. It is suitable for projects that require high starting capacity, stable standby performance, and strong load acceptance.

• Suitable for 600kW class generator systems

• Commonly used in 750kVA to 850kVA genset configurations

• Designed for large electrical load backup

• Stable standby and emergency power output

Engine Platform Features

• 18.9 liter heavy displacement diesel engine

• 6 cylinder inline structure

• Turbocharged with air-air intercooling

• Generator drive optimized configuration

• Compatible with 50Hz and 60Hz generator systems

Official Generator Drive Engine Specification

CCEC KTAA19-G6A-A (1500 RPM) Generator Drive Engine is 6-Cylinder Inline, 18.9 liters Four-Strokes Engine with 159 mm (6.25 in) Bore and 159 mm (6.25 in) Stroke. KTAA19-G6A-A Generator Drive Engine Equipped with PT Fuel System, Comes with Turbocharger and Air-Air Intercooler. The Standby Power for 50 Hz Generator Set (1500 RPM) of CCEC KTAA19-G6A-A Generator Drive Engine is 818 HP (610 kW).

CCEC KTAA19-G6A-B (1800 RPM) Generator Drive Engine is 6-Cylinder Inline, 18.9 liters Four-Strokes Engine with 159 mm (6.25 in) Bore and 159 mm (6.25 in) Stroke. KTAA19-G6A-B Generator Drive Engine Equipped with PT Fuel System, Comes with Turbocharger and Air-Air Intercooler. The Standby Power for 60 Hz Generator Set (1800 RPM) of CCEC KTAA19-G6A-B Generator Drive Engine is 890 HP (664 kW).

Typical Deployment Scenarios

• Large standby power systems

• High capacity generator stations

• Critical infrastructure backup

• Grid support and utility reserve power

• Heavy electrical load facilities

Supply and Configuration

DIOU POWER supplies KTAA19-G6A generator sets with enclosure options, controller systems, alternator selections, and export packaging. Voltage, frequency, and control configurations can be customized for project requirements.
