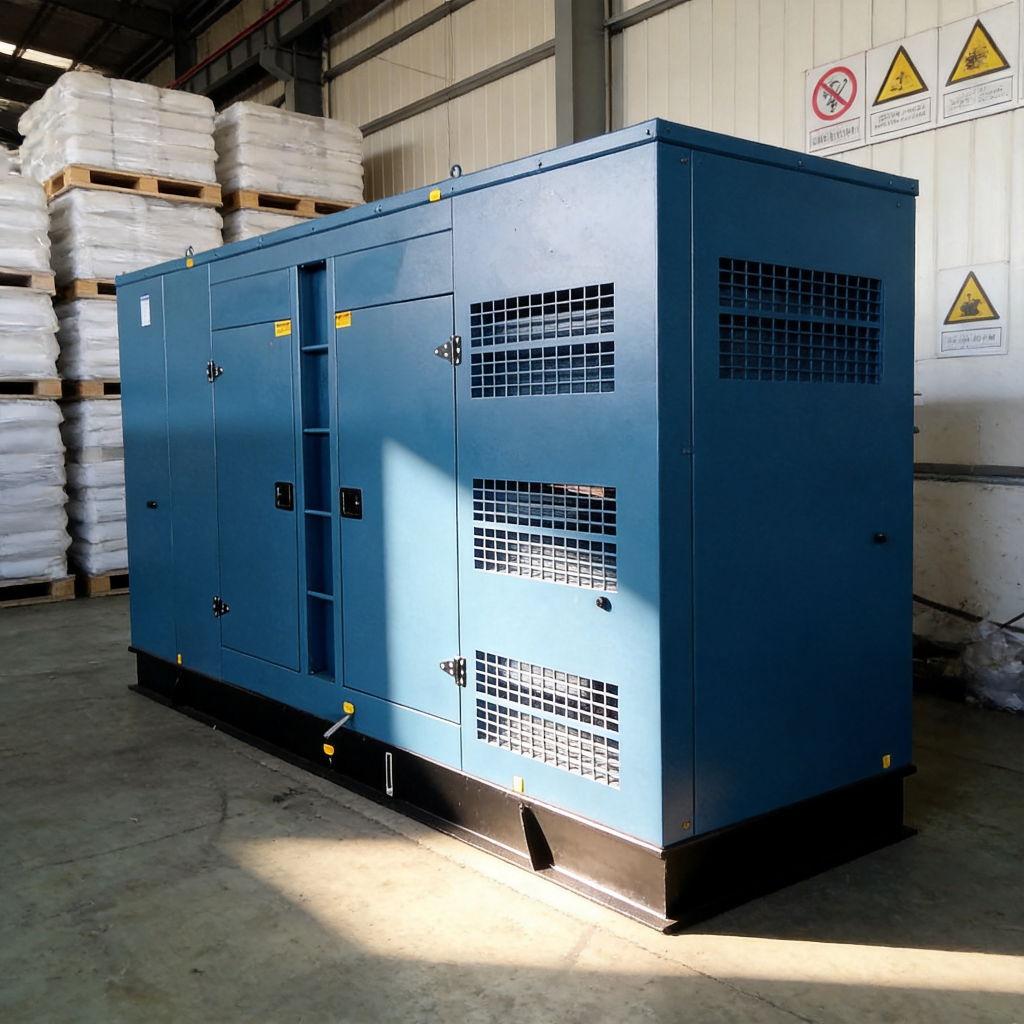

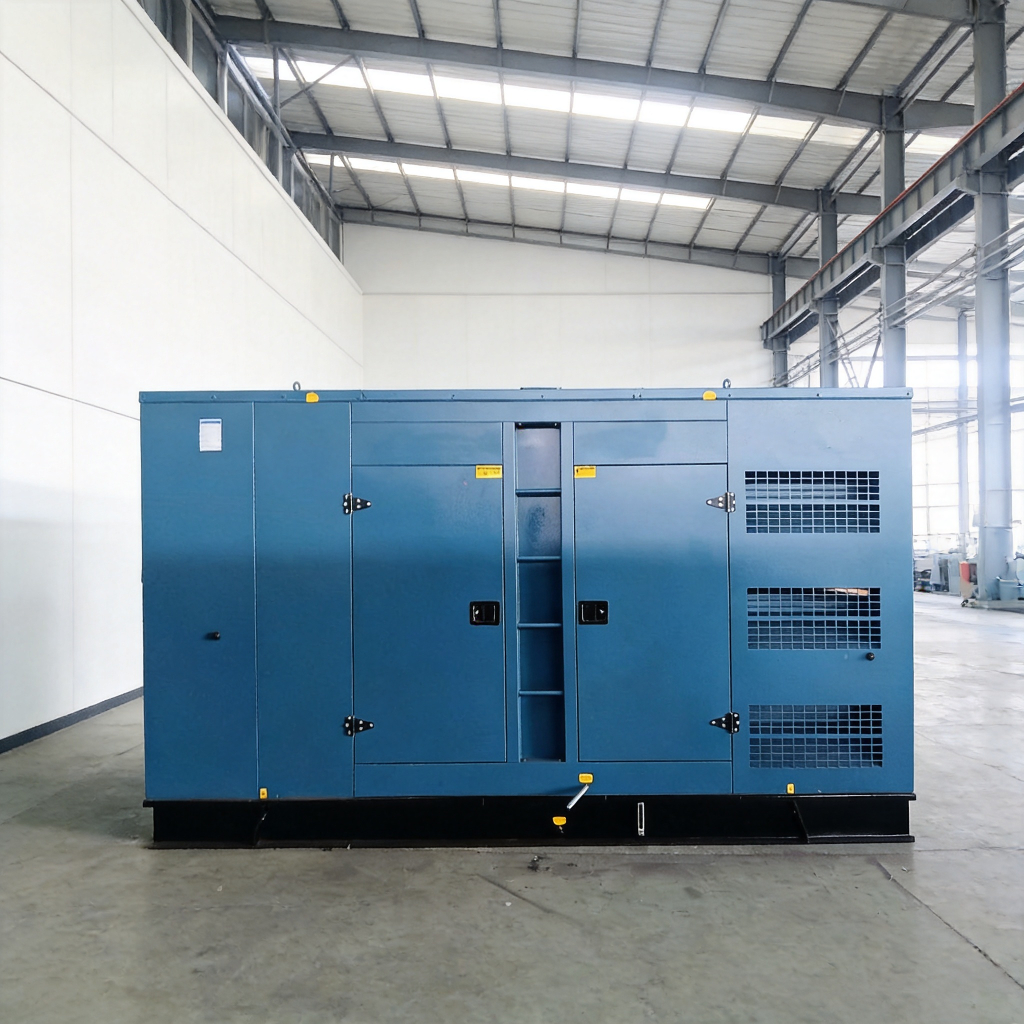

Weichai WP6D152E200 Silent Diesel Generator Set for Compact Industrial Backup Power

Compact Industrial Power Solution

The WP6D152E200 is built on the Weichai WP6 series engine platform, offering stable performance, efficient fuel consumption, and reliable operation for medium and small industrial power applications.

It is suitable for both standby and prime power use in environments requiring continuous and stable electricity supply.

Main Technical Specifications

Generator Set Data

Model WP6D152E200
Rated Power 150kW
Standby Power 165kW
Rated Capacity 187kVA
Frequency 50Hz / 60Hz optional
Rated Voltage 400V 415V 440V customizable
Phase 3 phase 4 wire
Power Factor 0.8 lagging
Type Silent diesel generator set

Engine Data Weichai WP6 Series

Engine Model WP6D152E200
Engine Type 6 cylinder inline
Aspiration Turbocharged and intercooled
Cooling System Water cooled
Starting System 24V electric start
Governor Type Electronic governor
Fuel System Direct injection diesel engine

Electrical Performance

Voltage Regulation Automatic Voltage Regulator
Frequency Stability ±0.5 percent
Voltage Stability ±1 percent
Insulation Class Class H
Protection Grade IP23 alternator standard

Fuel and Operation Data

Fuel Type Diesel
Fuel Consumption at 100 percent load approximately 205 to 215 g per kWh
Fuel Consumption at 75 percent load approximately 190 to 200 g per kWh
Lubrication Oil Capacity approximately 20 to 24 liters depending on configuration

Silent Enclosure System

The generator set is equipped with a soundproof canopy designed for industrial and commercial environments. It reduces operating noise and protects the unit from dust, rain, and external environmental impact. The structure is designed for easy maintenance access and long service life.

Application Scenarios

This model is widely used in

Small and medium industrial plants
Commercial buildings and shopping centers
Residential and community backup power systems
Construction site auxiliary power supply
Light industrial manufacturing facilities

Optional Configurations

ATS automatic transfer switch system
Remote monitoring control system
Parallel operation system
Open type configuration
Trailer mounted mobile solution

Quality Assurance

Each unit is fully tested under load conditions before shipment to ensure stable voltage output, frequency control, and reliable long term operation. All products follow standardized factory inspection procedures.

Company Profile

Diou Power is a professional diesel generator manufacturer in China, providing OEM and ODM solutions for global industrial power projects with a focus on reliability, customization, and export service support.
